Remote Management Anti Impact IK09 Solar LED Street Light 140WP DLC

  • 1
  • 2
  • 3

Brand Name : DALITE

Model Number : LLDL-904

Certification : UL, DLC, CE, CB, ENEC

Place of Origin : CHANGZHOU CITY CHINA

MOQ : 1 set

Price : Negotiable

Payment Terms : L/C, T/T

Supply Ability : 40000sets/month

Delivery Time : 2-6 weeks

Packaging Details : Form + Carton

Solar Module : Hexagonal

Dimensions : 229mm/360mm

Used for Code : LLDL-904

Application : Street, Roadway

Contact Now

Hexagonal Solar Module, CE&CB&UL, Waterproof IP66, Anti-Impact IK09, LLDL-904,Solar Power Street Lights

Code : LLDL-904

Key Advantages
  • Powered by the sun
  • Remote Management
  • Smart Sensors
  • Easy Installation & Maintenance
  • High Quality Lithium Battery
  • Environment
PRODUCT DESCRIPTION

Remote Management Anti Impact IK09 Solar LED Street Light 140WP DLC

Dimensions

Remote Management Anti Impact IK09 Solar LED Street Light 140WP DLC

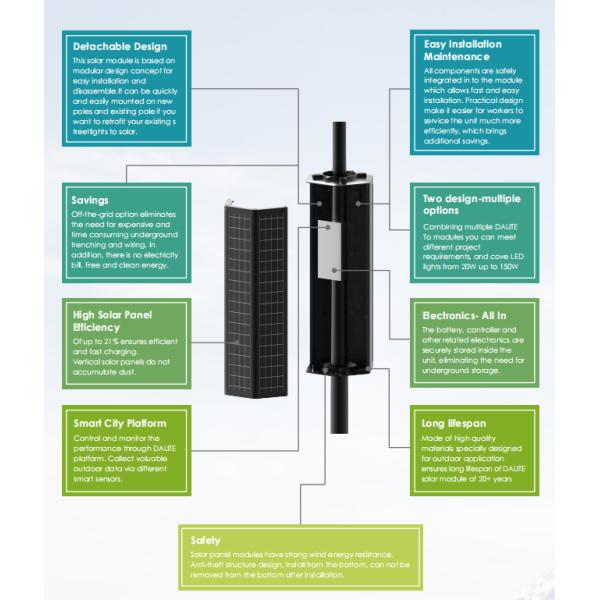

Solar Module

Conventional lighting can be transformed into solar lighting
The diameter of the lamp pole can be assembled from 60-160mm
Model HS-M HS-L
Description Solar Module 1.16M Solar Module 1.56M Solar Module 1.0M Solar Module 1.5M
Module Dimensions 229*200*1160mm 229*200*1560mm 360*320*1000mm 360*320*1500mm
Solar Power 100 Wp 140 Wp 120 Wp (6*20Wp) 180 Wp (6*30Wp)
Cells type Mono
Solar Panel Efficiency ≥21%
Solar module backsheet colour White (optional black backsheet)
Module material Aluminium+tempered glass
Vmp 18V
Imp 5.5A 7.7A 6.6A 10A
Connecting box LH0803 M15 0.6M
Operating Temperature -30℃~70℃
Module Weight 12KG(approximate) 18KG(approximate) 18KG(approximate) 26KG(approximate)
Designed Life ＞20 years

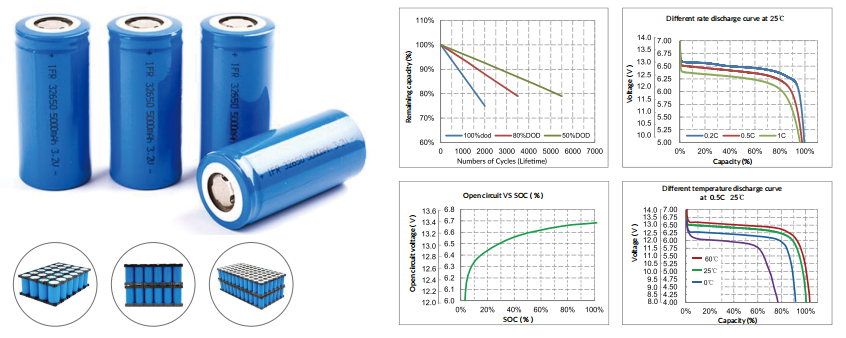

Battery Performance

Description Parameters of LiFepo4 cell
Product size Φ32*70mm
Nominal Capacity 6000mAh
Nominal Voltage 3.2V
limited charge voltage 3.65V (0~60℃)
Standard Discharge Circuit 0.5C (0~60℃)
AC Imp ≤10mΩ
Cycling Life 2000 - cycle
Charge Temperature 0~60℃
Discharge Temperature -20~60℃
Storage Temperature -20~45℃
Weight 141g±2g
Pack Battery Module
Battery Module A Battery Module B Battery Module C Battery Module D
12.8V 24AH 12.8V 36AH 25.6V 18AH 25.6V 24AH
307.2WH 460.8WH 460.8WH 614.4WH

Remote Management Anti Impact IK09 Solar LED Street Light 140WP DLC

Remote Management Anti Impact IK09 Solar LED Street Light 140WP DLC
Remote Management Anti Impact IK09 Solar LED Street Light 140WP DLC
Application examples
Remote Management Anti Impact IK09 Solar LED Street Light 140WP DLC
